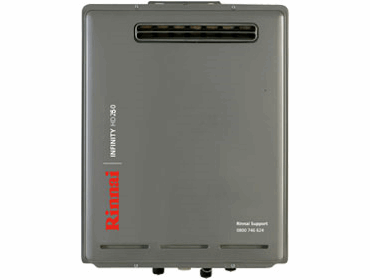

Rinnai temperature controlled continuous flow gas hot water system for external applications. Factory preset to 55 °C.
Hot water capacity
2.4 to 37 litres per minute.
Suitable for
Commercial and domestic external applications
• Applications requiring higher hot water temperatures, can be set up to 95 °C
• Mains and low pressure systems
• Solar installations as a gas boost
Hard or acidic water will need to be treated in order to use this product.
Gas type
Available for Natural Gas or LPG. Specify gas type at time of purchase.
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.
Clearance below eaves, balconies, and other projections, for all models is 300 mm.
* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.
REU number:
REU-VR3237WG
Factory preset temperature:
55 °C
Rinnai product code:
INFHD250HNCN/ INFHD250HNCL
Capacity
Hot water capacity: 2.4 to 37 litres per minute
Nominal water capacity: 32 litres per minute at a 25 °C rise (1920 L/h)

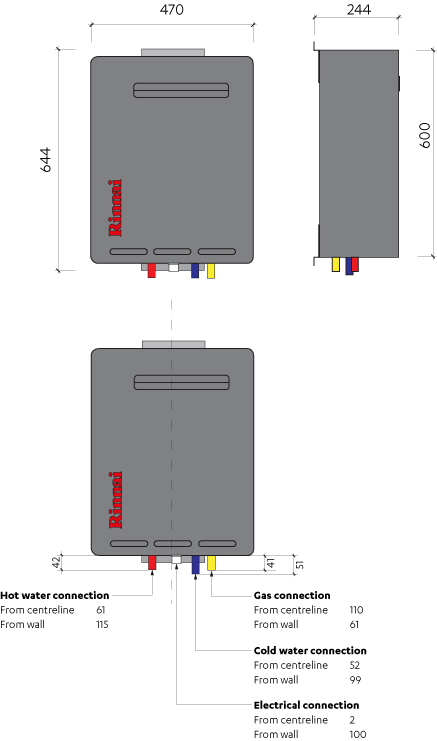

Connections
Hot water oulet: R¾ (20 mm)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Exhaust system
Forced flue
Frost protection
Fitted as standard.
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Ignition system
Direct electronic ignition
Injector size (mm)
NG: 1.00, 1.65 LPG: 0.75, 1.15
Line pressure (min.)
NG: 1.13 kPa, LPG:2.75 kPa
Line pressure (max.)
3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa).
In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.
Rinnai EXT INFINITY 32L LPGHD250 INFHD250HNCL
$2,875.00
Rinnai temperature controlled continuous flow gas hot water system for external applications. Factory preset to 55 °C.
Description
Rinnai temperature controlled continuous flow gas hot water system for external applications. Factory preset to 55 °C.
Hot water capacity
2.4 to 37 litres per minute.
Suitable for
• Applications requiring higher hot water temperatures, can be set up to 95 °C
• Mains and low pressure systems
• Solar installations as a gas boost
Hard or acidic water will need to be treated in order to use this product.
Gas type
Available for Natural Gas or LPG. Specify gas type at time of purchase.
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.
Clearance below eaves, balconies, and other projections, for all models is 300 mm.
* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.
Nominal water capacity: 32 litres per minute at a 25 °C rise (1920 L/h)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.
Minimum water flow: 2.4 litres per minute
• Declaration Number: 10996200911
• Certifcate Number: 6071
