Rinnai VT 26EXT LPG INFVT26L

Product Price:
$1,299.00 $1,493.85 incl GST
Installed Price
$3,050.00

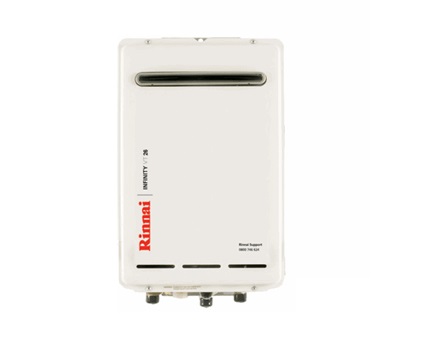

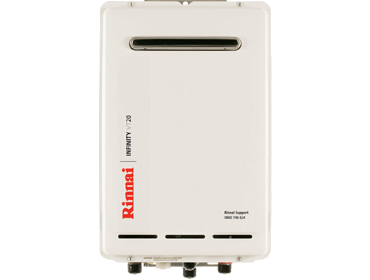

The Rinnai INFINITY VT is a continuous flow gas hot water system for external domestic applications. This type of hot water system produces endless hot water, and is an energy efficient water heating system because it's only on when you need hot water.

  • Suitable for 2 - 3 bedrooms
  • Suitable for 2 - 5 People
Compare
SKU: rinnai080279. Category: .

Product Description

The Rinnai INFINITY VT is a continuous flow gas hot water system for external domestic applications. This type of hot water system produces endless hot water, and is an energy efficient water heating system because it’s only on when you need hot water.

The all-new Rinnai INFINITY VT range has an improved minimum start-up flow rate, saving on water and ensuring your Rinnai INFINITY is future proofed for water efficient tapware.

Suitable for:
• external domestic applications
• high simultaneous hot water demand applications (homes with 1-2 bathrooms)
• mains and medium pressure systems

Hard or acidic water will need to be treated to use this product.

Gas type
Available for Natural Gas or LPG. Specify gas type at time of purchase.

General clearances
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.

Clearance below eaves, balconies, and other projections, for all models is 300 mm.

* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.

REU number: REU-VR2626WG
Factory preset temperature: 55 °C
Rinnai product code INFVT26N/INFVT26L



Capacity Hot water capacity: 1.8 to 26 litres per minute
Nominal water capacity: 26 litres per minute at a 25 °C rise (1560 L/h)

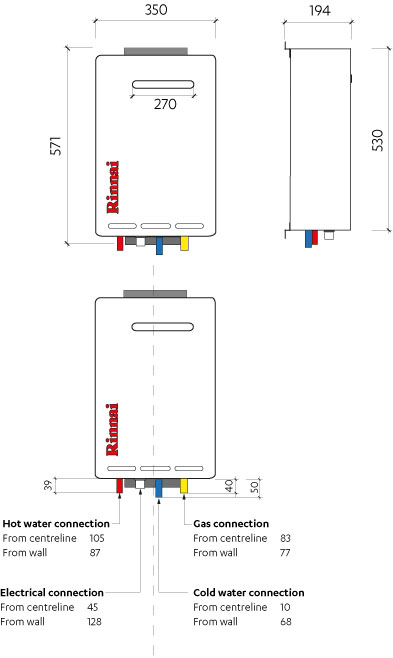

Connections Hot water outlet: R¾ (20 mm)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Exhaust system Forced flue
Frost protection Fitted as standard.
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Ignition system Direct electronic ignition
Injector size NG: 1.0, 1.55
LPG: 0.7, 1.05
Line pressure (min.) NG: 1.13 kPa, LPG 2.75 kPa
Line pressure (max.) 3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa).

In the case of commercial metering, (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming pressure down).

Power consumption Normal: 54 W (NG), 59 W (LPG), Standby: 2 W, Automatic Frost Protection: 125 W
Pressure relief Valve opens at 2060 kPa, valve closes at 1479 kPa
Noise level 50 dB(A)
NOx af Less than 60 ppm
Safety devices Flame failure, boil-dry protection, overheat protection, fusible link, pressure relief valve and combustion fan rpm check
Water supply Nominal operating pressure: 130-1000 kPa
Activation flow rate: 2.4 litres per minute
Weight 17 kg
Compliance ES: Supplier Declaration of Compliance
Declaration Number: 12409201012
• Certificate Number: 6930
Market release 2011



More Installations Comming Soon...

Downloads

Downloads brochure

  • images_downloadpdf
    installation-guide_vt
  • images_downloadpdf
    operation-guide_vt
  • images_downloadpdf
    spares_vt

Youtube

and turns off once the temperature inside the unit reaches 7 u00b0C.nnn

Ignition system

n

Direct electronic ignition

nnn

Injector size

n

NG: 1.0
