Product Description

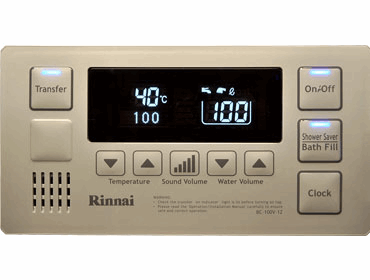

The Rinnai Bathroom Deluxe Controller  works in conjunction with the Rinnai Kitchen Deluxe Controller to provide full control over your hot water in your home.

Digital controllers allow you to select the exact temperature of the hot water at the tap within the controller temperature range. This provides the following benefits:

• Safety: If you have young children, the hot water can be pre-set to a child-safe level for the period while you are filling the bath. A safety interlock feature prevents the water temperature from being adjusted from another controller while the bathroom controller is operating and hot water is flowing.
• Gives you the ability to transfer control back to the kitchen contoller at the press of a button.
• No need to mix hot and cold water, this reduces the affect of temperature spiking when another tap in the building is turned on
• You use your Rinnai INFINITY continuous flow gas hot water unit more efficiently as less gas is required to heat water to 40 °C (typical shower temperature) than at 55 °C (default temperature without controllers)
• Allows easier diagnosis of problems (such as gas supply disruption) when the appliance is serviced by displaying error codes which the service person can utilise to track down the issue.

Extended warranty
Rinnai INFINITY installations with a Rinnai controller benefit from an extended warranty.

Suitable for
Domestic installations with a Rinnai INFINITY continuous flow gas hot water heater installed, refer compatible water heater models below.

Each remote controller can be individually programmed, however the water heater can only deliver one set temperature at any time.

Rinnai water controllers cannot be used with Rinnai INFINITY units connected to solar systems, or when a Rinnai iHeat is installed.

Positioning
Deluxe controllers are water resistant, however, durability is improved when positioned outside the shower recess. All deluxe water controllers must be installed at least 400 mm above the highest part of a sink, basin, or bath.

Compatible with the following Rinnai water heater models
• Rinnai INFINITY VT range
• Rinnai INFINITY EF range
• Rinnai INFINITY HD range
• Rinnai INFINITY XR range

Controller configurations
A maximum of four water controllers can be fitted to a system. Any combination of the deluxe, compact, and wireless controllers can be used within the following parameters:

• Only ONE master can be installed. This can be a Kitchen Deluxe, Compact, or Wireless Controller.
  • Up to two Bathroom Deluxe Controllers can be installed.
  • Fourth controller in any installation must be a Compact or Wireless Controller.
